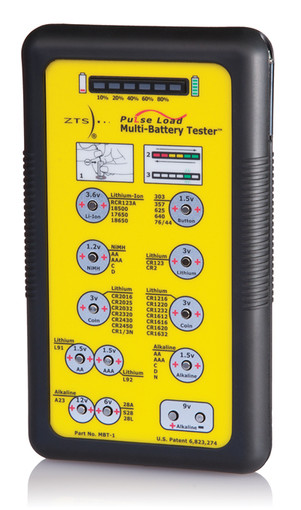

ZTS Multibattery Tester

This is truly an amazing battery tester. This is the only tester we have seen that can quickly indicate the charge level on almost any battery. Inexpensive battery checkers can give a good indication of the charge level of alkaline batteries, but the ZTS Multi-Battery Tester can quickly show the charge level of rechargeable NiMh and NiCd batteries as well.

The ZTS Multi-Battery Tester (MBT) can check more than 30 battery types, including the popular NiMH and NiCd rechargeable batteries. Its microprocessor-controlled pulse load test is the most advanced and accurate available. The MBT computes the battery's remaining power capacity (between 10-100%) during each test. It is easy to use - no switches or settings.

Microprocessor controlled pulse load placed on the battery at the time of testing gives a clear reading of the battery charge level. The ZTS-Multi-Battery tester doesn't have the ability to measure battery capacity (ie it won't be able to check if a battery is 1500 mAh or 2000 mAh) since that requires a tester which completely drains the battery over several hours.

• P/N: MBT-1
  Testing capability (battery list):
  3.6v Li-Ion rechargeable [RCR123A, 18500, 17650, 18650]
  1.5v button cell [S76, A76, A625, A640, LR44, 357, 303]
  1.2v NiMH/NiCd rechargeable [AA, AAA, C, D]
  1.5v lithium [AA L91, AAA L92]
  3v lithium coin [CR1216, CR1220, CR1232, CR1612, CR1616, CR1620, CR1632, CR2016, CR2025, 58L, 1/3N]
  [CR2032, CR2320, CR2430, CR2450]
  6v '28' series [28A, S28, 28L, 544, 4LR44]
  3v lithium cylindrical [CR123, CR2]
  1.5v alkaline [AA, AAA, C, D, N]
  12v alkaline [A23]
  9v alkaline & carbon zinc
  Power (internal): 4 AA batteries
  Display: 6 LEDs - colors green, yellow, red
  Pulse Load: magnitude varies according to battery type
  Operation: microprocessor-controlled test cycle
  Test duration: 2-3 seconds, varies according to battery type
  Contact terminals: solid brass, nickel-plated
  Dimensions: 8 x 4.5 x 1.25 inches
  Weight: approx. 14.5 oz. / 400g (without batteries)
  UPC: 856777000169

• Power: 4 AA alkaline (internal)
• Dimensions: 7.25 x 4 x 1.25 inches
• Weight: approx 8 oz.
• Batteries not included.
